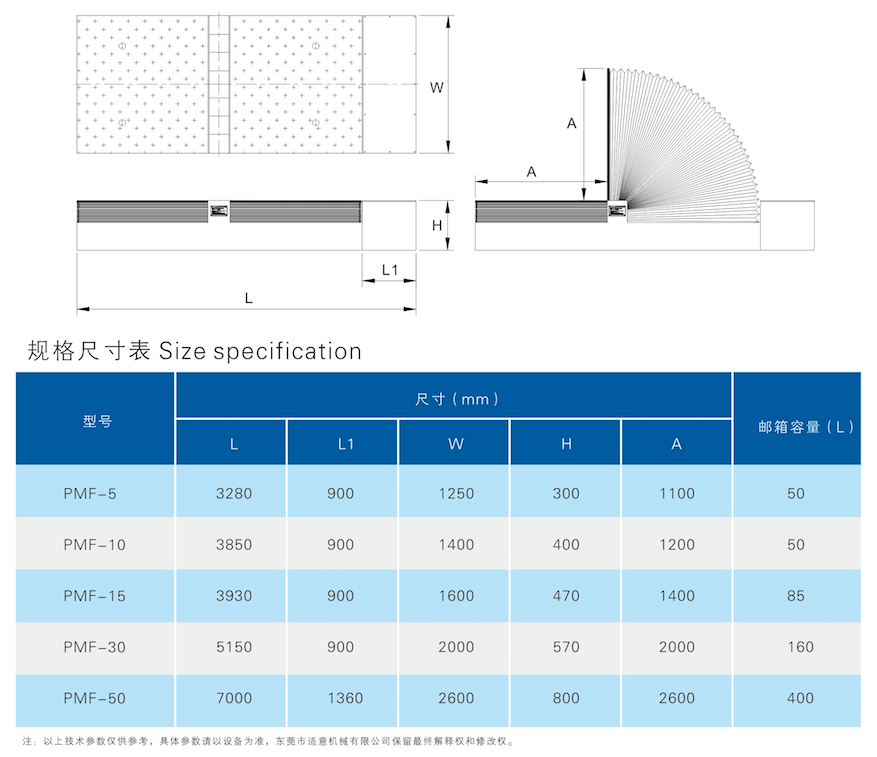

  • Dimension Chart
  • Work Flow Chart
  • Anatomy
  • Video
    • Commodity name: Flat plate turnover machine
    • Commodity ID: 122

    The 180 degree flat plate mold turnover machine is an improvement of our company on the basis of the traditional design concept of mold turnover machine, which uses hydraulic pressure to drive cam movement to complete the required mold turnover action. It has the characteristics of small footprint.

  • Model

    Table size (mm)

    Table height (mm)

    Maximum bearing capacity (KN)

    90 degree flip time (sec)

    Motor power (kw)

    Overall dimension (mm)

    Machine weight (t)
    PMF-5 1250×1100 300 50 20 5.5 3600×1250×300 2
    PMF-10 1400×1200 400 100 25 7.5 3580×1400×400 4
    PMF-15 1600×1400 470 150 30 11 3930×1600×470 6
    PMF-30 2000×2000 570 300 40 15 5150×2000×570 11
    PMF-50 2600×2600 800 500 150 18.5 7000×2600×800 18

    Note: The above technical parameters are for reference only, and the specific parameters shall be subject to the equipment. Dongguan Shiyi Machinery Co., Ltd. reserves the right of final analysis and modification
